2x1A DC Motor Shield for Arduino
2x1A DC Motor Shield for Arduino
Couldn't load pickup availability

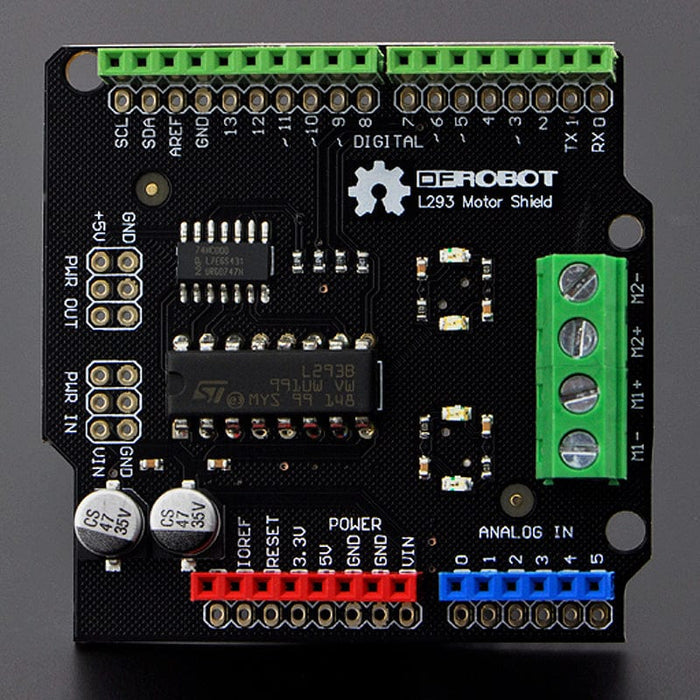

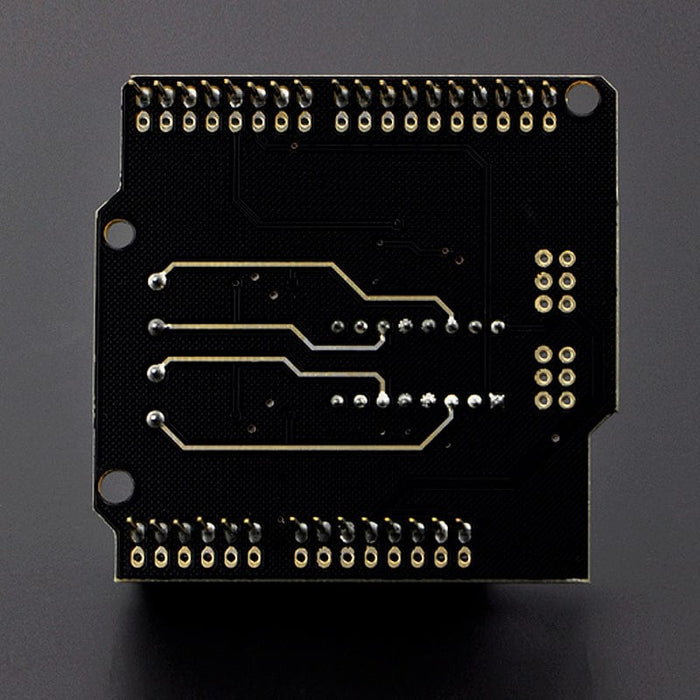

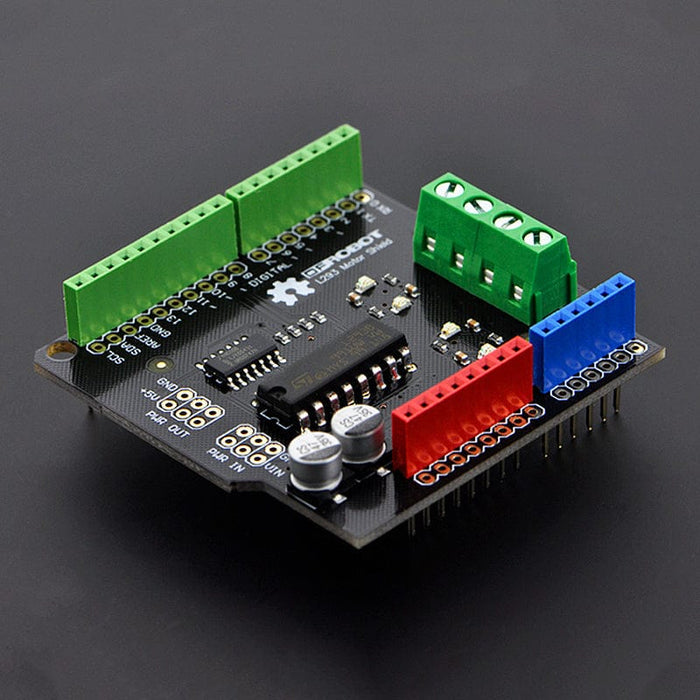

This DC Motor shield for Arduino uses L293 chip which allow to drive two 7-12V DC motors with maximum 1A current each channel. This shield can be directly stacked on standard Arduino Uno and Arduino Mega.
|
Micro:bit Driver Expansion Board |
Gravity: Dual Bipolar Stepper Motor Shield for Arduino (DRV8825) |
Quad DC Motor Driver Shield for Arduino |
||
| SKU |
DRI0001 |
DFR0548 |
DRI0023 |
DRI0039 |
|
Chip |
L293B |
HR8833 |
DRV8825 |
TB6612FNG |
|
Operating voltage |
5V DC | / | 3.3V/5V |
2.7~5.5V |
| Motor drive voltage |
7-12V DC |
3.5~5.5V DC |
8.2-45VDC |
2.5V-13.5V |
|
Maximum drive current |
1A each way | 1.5A | 1.6A |
1.2A continuous current (per channel) 2A (continuous pulse) 3.2A (single pulse) |
|
Motor drive using pins |
PIN4/5/6/7 (Arduino Controllor) |
/ |
D4，D5，D6 D7，D8，D12 |
D3,4,5,6,7,8,11,12 |
|
Dimension |
56x57mm |
63 x 58mm |
83*55*25mm |
52mm * 53mm |
|
Weight (g) |
60 | 64 | 48 | 24 |
|
Frequently used With |
FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series |
FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series |
FIT0278/FIT0503 |
FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series |
|
Key Features |
With motor indicator |
8-way servo interface DC motor x4/stepper motor x2(multiplexed with motor interface) |
Full step, 1/2, 1/4, 1/8, 1/16, 1/32 step mode |
High-speed drive capability, can drive ordinary 2-phase stepper motor to 5000RPM, and drive quad DC at the same time |
|
Gravity: 2x2A Motor Shield for Arduino Twin |
TMC260 Stepper Motor Driver Shield |
2x2A DC Motor Shield for Arduino |
||
| SKU |
DFR0502 |
DRI0017 |
DRI0035 |
DRI0009 |
|
Chip |
TB6612FNG |
L298 |
TMC260 |
L298P |
|
Operating voltage |
2.7~5.5V |
5V |
5V |
5V |
| Motor drive voltage |
12V (peak value) |
4.8 ～ 35V |
40V max |
6.5~12v(VIN Power Supply),4.8~35V (External Power Source) |
|
Maximum drive current |
1.2A continuous current (per channel) 2A (continuous pulse) 3.2A (single pulse) |
up to 2A/channel |
up to 2A per motor coil |
2A |
|
Motor drive using pins |
D4 D5 D6 D7 |
D10,11,12,13 |
/ |
Pin 4,5,6,7 are used to drive two DC motor |
|
Dimension |
68.5mm×53.3mm |
56x57mm |
55x55mm |
|
|
Weight (g) |
36 | 35 | 35 | 60 |
|
Frequently used With |
FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series |
FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series |
FIT0278/FIT0503 |
FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series |
|
Key Features |
Integrated XBee Slot, XBee, WiFi Bee, Bluetooth Bee, I2C. |
Mirrored version of DRI0009. Drive pins: 10, 11, 12, 13 Not compatible with IO expansion board V7.1. The control port is four, which reduces the overhead of the Arduino digital ports, and easy to program. |
Suitable for driving bipolar stepper motors. SPI serial bus control or STEP/DIR signal control. Controllers such as Mega with full port expansion. 256 times microstep subdivision. |
Use mirror motor to drive DRI0017 to aviod the conflicts . Support PWM speed control. Support PLL advance speed control |
Specifications
- 2 way 7-12V motor drive
- Up to 1A current each way

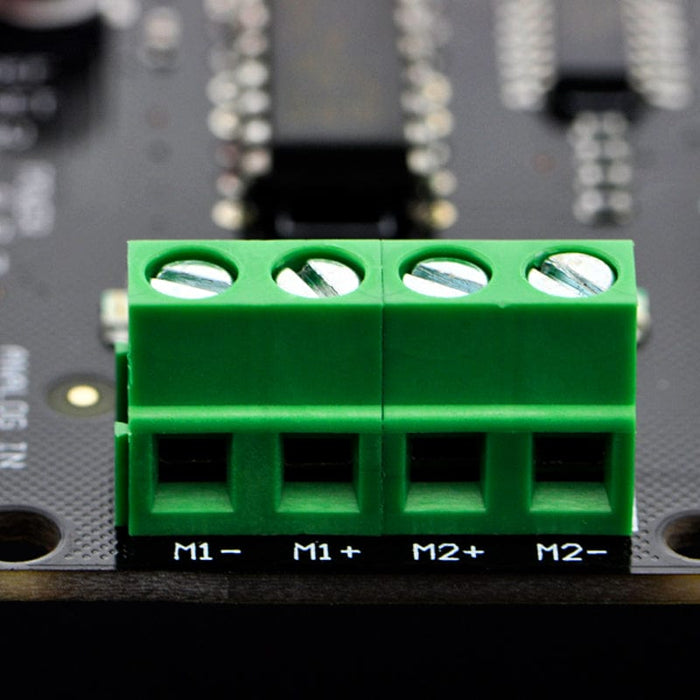

- PIN 4,5,6,7 are used to drive two DC motors
- Support PWM speed control
Resources
- Product Wiki
Package Contents
- 1x 1A Motor Shield For Arduino
