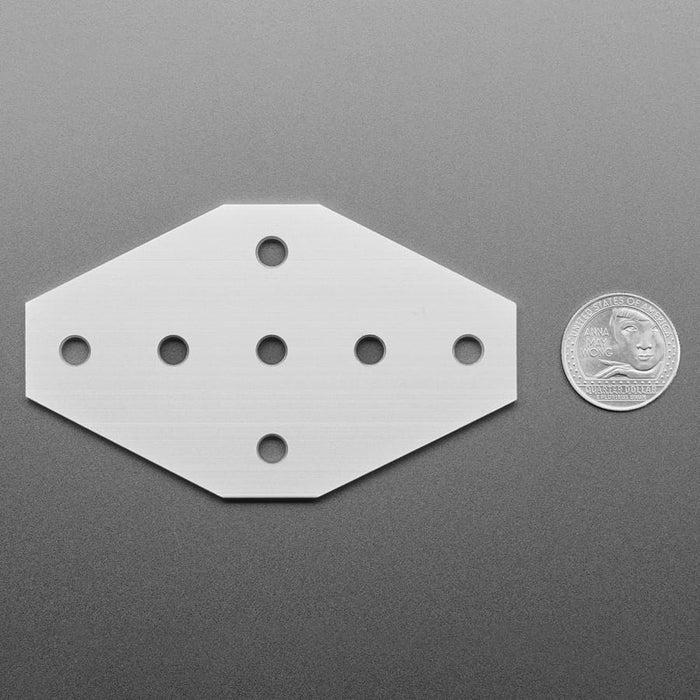

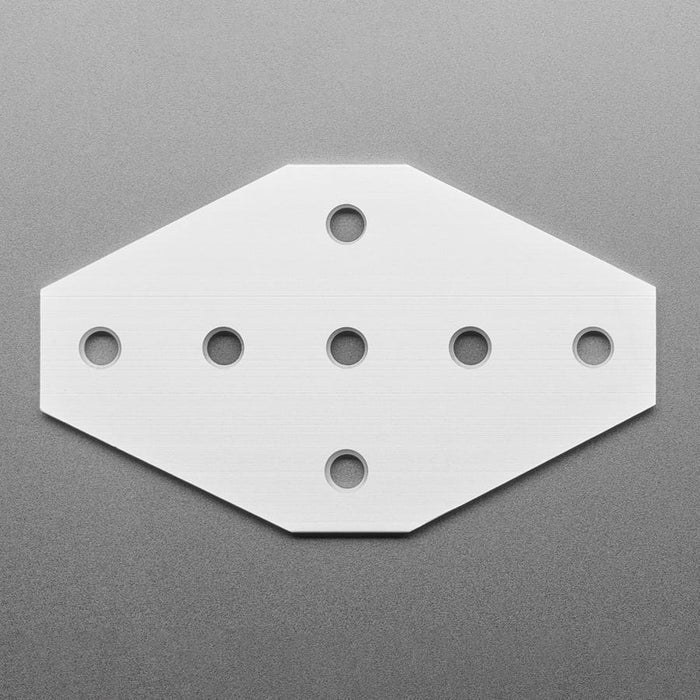

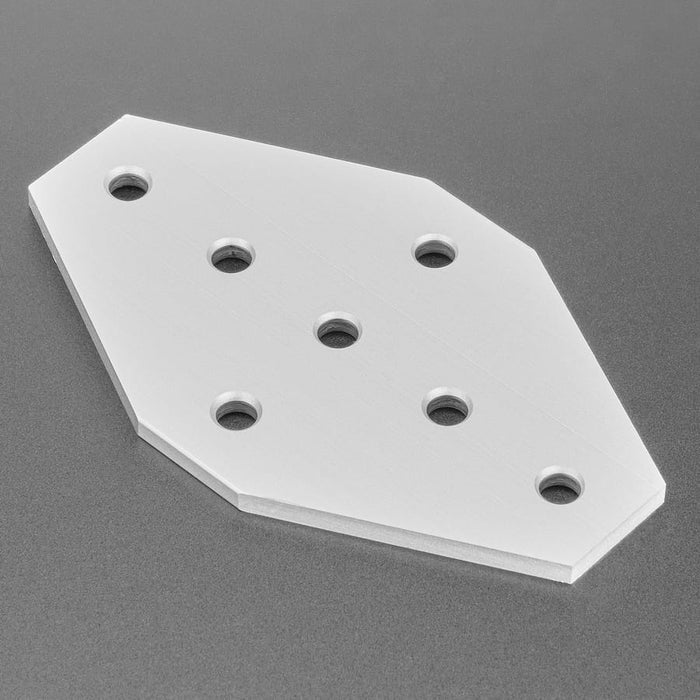

Cross-Plate for 20x20 Aluminium Extrusion

The 7-Hole Cross Joining Plate provides a simple way to connect multiple sections of 20mm aluminium extrusion, making it ideal for strengthening frames, supports, and custom structural assemblies.

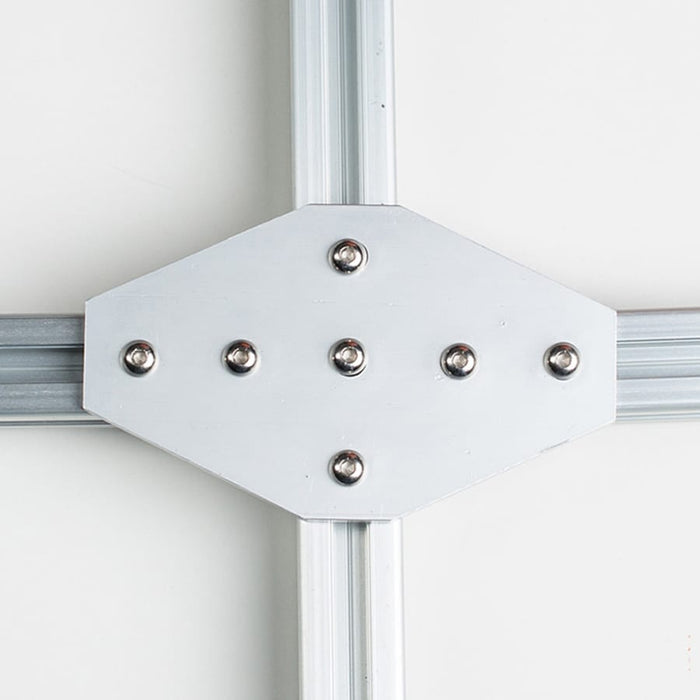

Attach multiple pieces of 20mm slotted aluminium extrusion together with this 7-hole cross joining plate. The plate measures 100mm long × 60mm wide and is 4mm thick. It features 5.3mm diameter holes spaced 20mm apart, allowing it to be used with either M4 or M5 screws. For mounting to 20mm extrusion, we recommend using 10mm long screws.

Features

• Connects multiple pieces of 20mm slotted aluminium extrusion
• 7-hole cross joining plate design

• 5.3mm diameter holes spaced 20mm apart
• Compatible with M4 or M5 screws
• Recommended 10mm long screws for 20mm extrusion mounting

Specifications

• Dimensions: 100mm long × 60mm wide × 4mm thick

Package Contents

• 1x Cross-Plate for 20x20 Aluminium Extrusion
