ZIP Stick - 5 ZIP LEDs

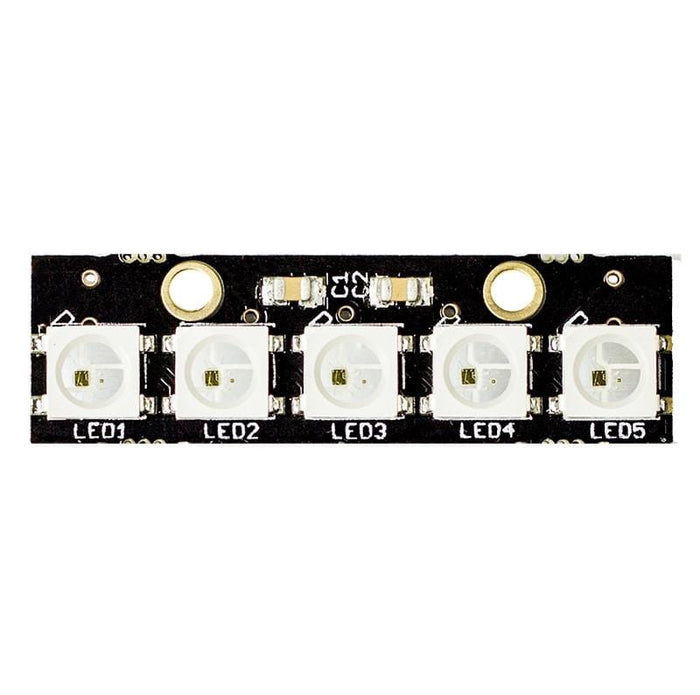

Each of our new ZIP sticks has five individually addressable RGB LEDs. Each LED can be controlled independently and all LEDs are connected using the same three wire bus.

Each LED can produce a full spectrum of colours independent to all of the other LEDs on the bus. Each ZIP LED has a Red, Green and Blue element within the LED, and each of these can achieve 256 levels of brightness. This results in 16,777,216 possible output colours. Multiple ZIP LEDs can be connected to produce longer strings/strips.

The LEDs used are based on the WS2812B part which is compatible with any WS2812B driver code. They can also be coded in the MakeCode Block/Javascript editor.

Features:

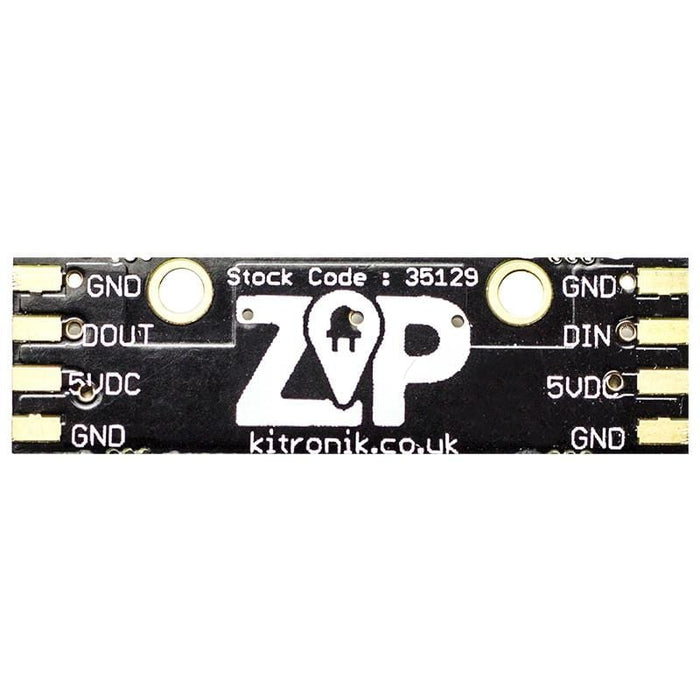

• Simple 3 wire connection for all LEDs
• Compatible with Adafruit NeoPixel and other WS2812B driver code
• Integrated reset circuit
• Supply voltage: 3.5V to 5V

Contents:

• 1 x Kitronik ZIP Stick

Dimensions:

• Length: 34.3mm
• Width: 10.2mm
• Height: 3.2mm
• Hole Diameter: 2.2mm

Resources:

• Guide For Using Kitronik ZIP LEDs With The BBC micro:bit
• Zip Stick Datasheet
• WS2812B LED datasheet
